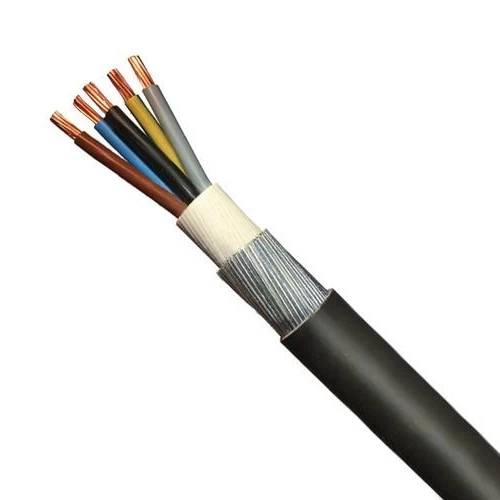

Stranded Copper Electric Cable 4×95+50 sq mm 0.6/1kV, XLPE Insulation, SWA Armored, 500 Meter Length | BAHRA

Armoured Stranded Copper Electric Cable (CU/XLPE/SWA/PVC) 4×95+50 sq mm, 0.6/1kV Low Voltage, The cable is armored with Galvanized Steel Wires (SWA) for protection against external mechanical stresses, Fire and Thermal Deformation Resistant, Produced by BAHRA Cables.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Steel Wires (SWA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx95 mm2 ) + 50mm2
• Number of Phase Wires: 19
• Number of Neutral Wires: 19
• Nominal Insulation Thickness of Phase: 1.1 mm
• Nominal Insulation Thickness of Neutral: 1.0 mm
• Nominal Steel Wire Diameter: 2.0 mm
• Nominal Sheath Thickness: 2.2 mm
• Approx Overall Diameter: 40.3 mm
• Weight: 4914 kg/km
• Standard Length: 500 meters
• Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
• Standard: BS 5467
