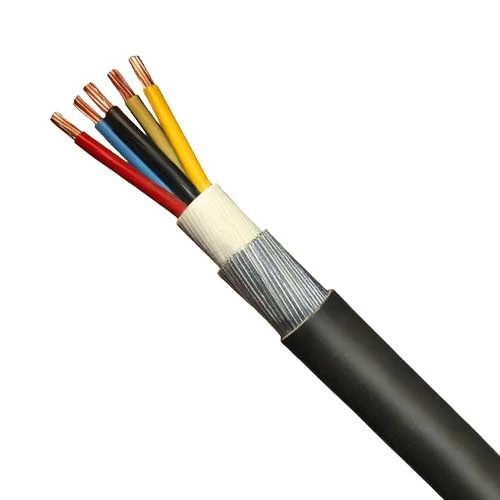

Stranded Copper Cable 4×16+10mm 0.6/1kV, XLPE Insulated, SWA Armoured, 1000 m Length | BAHRA

Armoured Stranded Copper Electric Cable (CU/XLPE/SWA/PVC) 4×16+10 sq mm, 0.6/1kV Low Voltage, Insulated with XLPE for excellent electrical and thermal properties,  Heat and Moisture-resistant, Produced by BAHRA Cables.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Steel Wires (SWA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx16 mm2 ) + 10mm2
• Number of Phase Wires: 7
• Number of Neutral Wires: 7
• Nominal Insulation Thickness of Phase: 0.7 mm
• Nominal Insulation Thickness of Neutral: 0.7 mm
• Nominal Steel Wire Diameter: 1.25 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 23.2 mm
• Weight: 1275 kg/km
• Standard Length: 1000 meters
• Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
• Standard: IEC 60502-1
