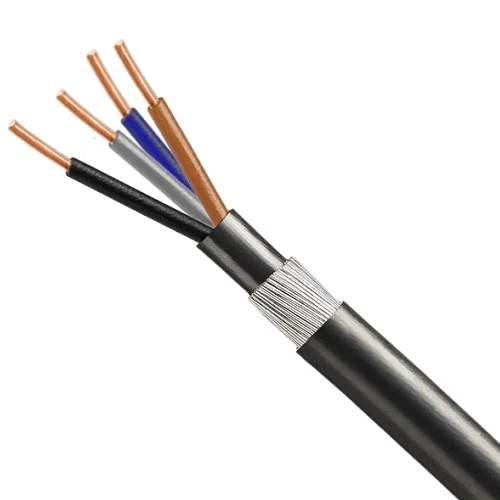

Armed with Steel Wires solid copper power cable (CU/XLPE/SWA/PVC), 4core, 4mm2 size conductor, 0.6/1kV, From Red Sea Cables (RESCAB) Company. It offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use.

• Conductor: Solid Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Galvanized Steel Wires (SWA)
• Outer Sheath: PVC
• Voltage: 0.6/1 kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 4 mm²
• Number of Wires: 1
• Nominal Insulation Thickness: 0.7 mm
• Nominal Steel Wire Diameter: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 18 mm
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Weight: 600 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue, Brown, Black, Gray
• Standard: BS 5467, 6346 Latest
