Electric Cable Solid Copper 6mm 4 Cores 0.6/1kV, Steel Tape Armed, XLPE Insulated, PVC Jacket, 1000 m | RESCAB

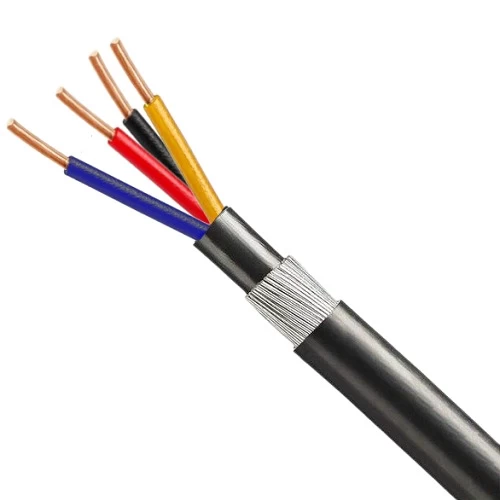

Armoured with steel tape solid copper power cable (CU/XLPE/STA/PVC), 4c, 6mm2 size conductor, 0.6/1kV, Produced by Red Sea Cables (RESCAB) Company. Comes in a variety of sizes and colors, ensuring the highest quality at the best prices.

• Conductor: Solid Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Galvanized Steel Tape (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1 kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 6 mm²
• Number of Wires: 1
• Nominal Insulation Thickness: 0.7 mm
• Nominal Steel Tape Thickness: 0.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 18 mm
• Max DC Conductor Resistance at 20°C: 3.08 ohm/km
• Weight: 630 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red, Yellow, Blue, Black
• Standard: IEC 60502-1
