CU/XLPE/STA/PVC Stranded Copper Armoured Power Cable, 4.5 Core, 4×70+35mm2, 0.6/1kV, 500 meter Length | BAHRA

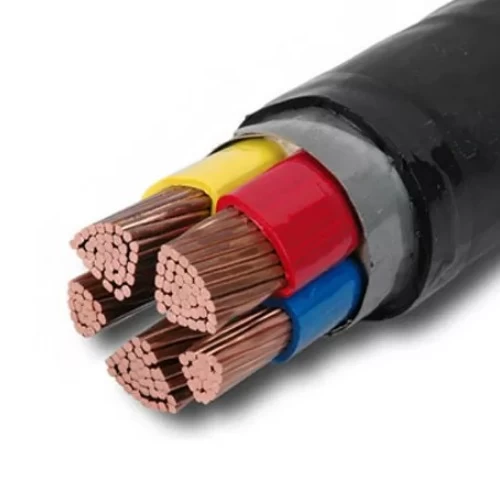

Armored copper-stranded electric cable (CU/XLPE/STA/PVC), 4 cores + neutral, 4×70+35 mm2, low voltage 0.6/1kV. High temperature and moisture resistance are provided by XLPE insulation and PVC sheath, with STA armor for mechanical protection. Produced by BAHRA Cables Company.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx70 mm2 ) + 35mm2
• Number of Phase Wires: 19
• Number of Neutral Wires: 7
• Nominal Insulation Thickness of Phase: 1.1 mm
• Nominal Insulation Thickness of Neutral:0.9  mm
• Nominal Steel Tape Thickness: 0.2 mm
• Nominal Sheath Thickness: 2.0 mm
• Approx Overall Diameter: 33.2 mm
• Weight: 2955 kg/km
• Standard Length: 500 meters
• Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
• Standard: IEC 60502-1
