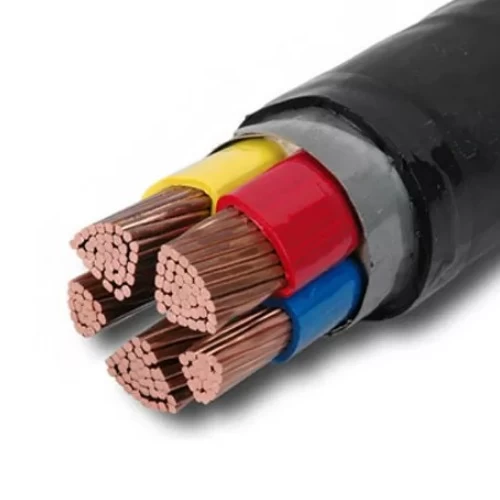

CU/XLPE/STA/PVC Stranded Copper Armoured Cable, 4.5 Core, 4×35+16mm2, 0.6/1kV, 1000 m Packaging | BAHRA

Armored copper-stranded electric cable (CU/XLPE/STA/PVC), 4 cores + neutral, 4×35+16 mm, low voltage 0.6/1kV. Ensures mechanical strength with STA armor, excellent thermal insulation with XLPE, and additional protection with PVC sheath. Produced by BAHRA Cables Company.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx35 mm2 ) + 16mm2
• Number of Phase Wires: 7
• Number of Neutral Wires: 7
• Nominal Insulation Thickness of Phase: 0.7 mm
• Nominal Insulation Thickness of Neutral: 0.7 mm
• Nominal Steel Tape Thickness: 0.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 25.7 mm
• Weight: 1658 kg/km
• Standard Length: 1000 meters
• Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
• Standard: IEC 60502-1
