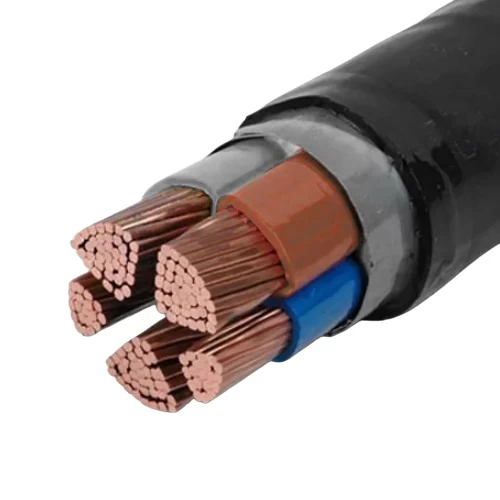

CU/XLPE/STA/PVC Stranded Copper Armoured Cable, 4.5 Core, 4×16+10mm2, 0.6/1kV, Length 1000 meter | BAHRA

Stranded copper armored cable CU/XLPE/STA/PVC, 4 core + neutral, 4×16+10 mm, low voltage 0.6/1 kV. Offers strength and thermal insulation. Produced by BAHRA Cables Company.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx16 mm2 ) + 10mm2
• Number of Phase Wires: 7
• Number of Neutral Wires: 7
• Nominal Insulation Thickness of Phase: 0.7 mm
• Nominal Insulation Thickness of Neutral: 0.7 mm
• Nominal Steel Tape Thickness: 0.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 21.5 mm
• Weight: 1008 kg/km
• Standard Length: 1000 meters
• Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
• Standard: BS 5467
