CU/XLPE/STA/PVC Stranded Armoured Electric Cable, 4.5 Core, 4×400+185 sq mm, 0.6/1kV, 300 meter/Drum | BAHRA

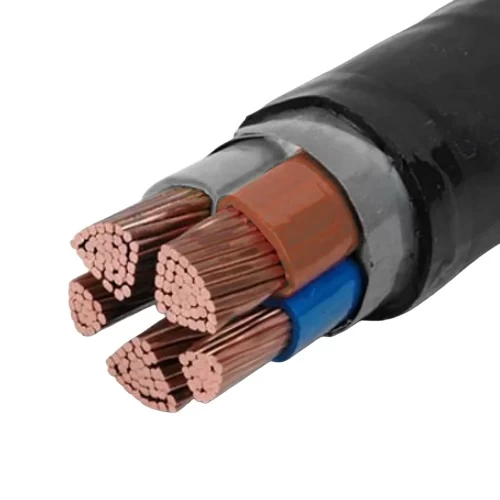

Armored copper-stranded electric cable (CU/XLPE/STA/PVC), 4 cores + neutral, 4×400+185 mm2, low voltage 0.6/1kV. Durable design with STA armor, XLPE insulation, and PVC sheath for optimal protection against heat and external conditions. Produced by BAHRA Cables Company.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx400 mm2 ) + 185mm2
• Number of Phase Wires: 61
• Number of Neutral Wires: 37
• Nominal Insulation Thickness of Phase: 2.0 mm
• Nominal Insulation Thickness of Neutral: 1.6 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 3.2 mm
• Approx Overall Diameter: 70.7 mm
• Weight: 15587 kg/km
• Standard Length: 300 meters
• Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
• Standard: BS 5467
