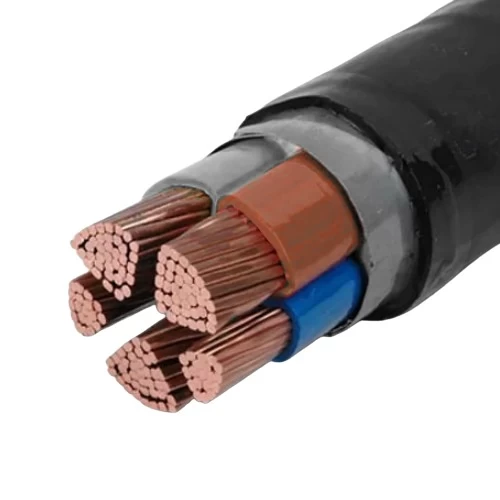

CU/XLPE/STA/PVC Stranded Armoured Electric Cable, 4.5 Core, 4×120+70mm, 0.6/1kV, Length 500 meters | BAHRA

Stranded copper armored cable (CU/XLPE/STA/PVC), 4 core + neutral, 4×120+70 mm, low voltage 0.6/1 kV, XLPE insulation withstands high temperatures and provides excellent resistance to moisture and chemicals, Ideal for heavy-duty applications. Produced by BAHRA Cables Company.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4.5 (4 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 4cx120 mm2 ) + 70mm2
• Number of Phase Wires: 37
• Number of Neutral Wires: 19
• Nominal Insulation Thickness of Phase: 1.2 mm
• Nominal Insulation Thickness of Neutral: 1.1 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 2.3 mm
• Approx Overall Diameter: 42.1 mm
• Weight: 5333 kg/km
• Standard Length: 500 meters
• Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
• Standard: BS 5467
