Bahra 4x70mm 0.6/1kV Electrical Cable, CU/XLPE/STA/PVC, Stranded Copper Wire, 500 meter

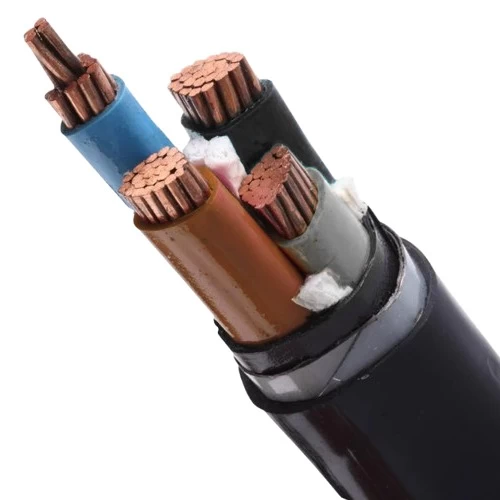

Armed stranded copper electric cable (CU/XLPE/STA/PVC), 4C, 70mm2 size wire, 0.6/1kV, produced by BAHRA Cables Company, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable and prevents harmful UV rays from damaging the cable.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 70 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.1 mm
• Nominal Steel Tape Thickness: 0.2 mm
• Nominal Sheath Thickness: 2.1 mm
• Approx Overall Diameter: 33.2 mm
• Weight: 3251 kg/km
• Standard Packaging Cable: 500 meters
• Phase Core Colors: Blue, Brown, Black, Grey
• Standard: BS 6724
