Bahra 4x500mm 0.6/1kV Cable, CU/XLPE/STA/PVC, Stranded Copper Wire, 250 meter

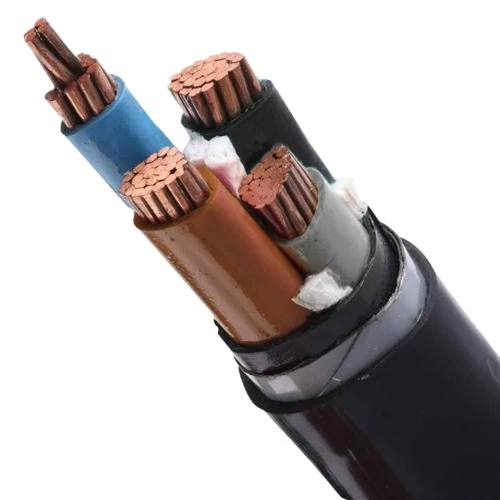

Armored stranded copper cable (CU/XLPE/STA/PVC), 4C, 500mm2 size, 0.6/1kV, produced by BAHRA Cables Company, the outer sheath provides additional protection for the cable and prevents harmful UV rays from damaging the cable.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 500 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 1.7 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 2.9 mm
• Approx Overall Diameter: 57.8 mm
• Weight: 11188 kg/km
• Standard Packaging Cable: 250 meters
• Phase Core Colors: Blue, Brown, Black, Grey
• Standard: BS 6724
