Bahra 4x400sq mm 0.6/1kV Electrical Cable, CU/XLPE/STA/PVC, Stranded Copper Conductor, 250 m

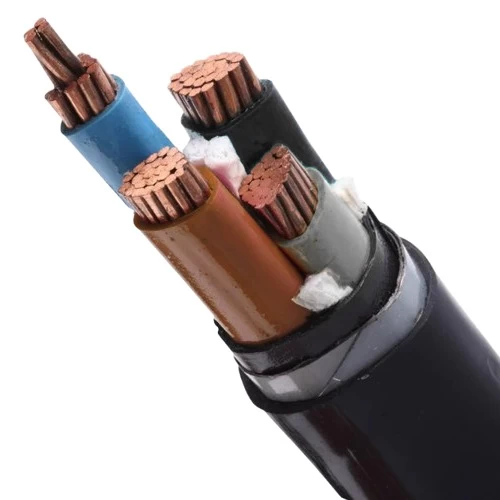

Armed stranded copper cable (CU/XLPE/STA/PVC), produced by BAHRA Cables Company, 0.6/1kV, 4 core, 400mm2 size, armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 400 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 1.7 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 2.9 mm
• Approx Overall Diameter: 57.8 mm
• Weight: 11188 kg/km
• Standard Packaging Cable: 250 meters
• Phase Core Colors: Blue, Brown, Black, Grey
• Standard: BS 6724
