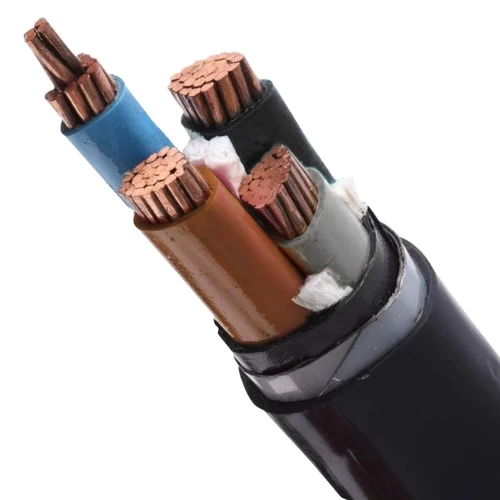

Bahra 4x300mm 0.6/1kV Power Cable, CU/XLPE/STA/PVC, Stranded Copper Conductor, Length 300 meter

Armored stranded copper cable (CU/XLPE/STA/PVC), four core, 0.6/1kV,  300sq mm size, produced by BAHRA Cables Company, the outer sheath provides additional protection for the cable, this makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 300 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 1.7 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 2.9 mm
• Approx Overall Diameter: 57.8 mm
• Weight: 11188 kg/km
• Standard Packaging Cable: 300 meters
• Phase Core Colors: Blue, Brown, Black, Grey
• Standard: BS 6724
