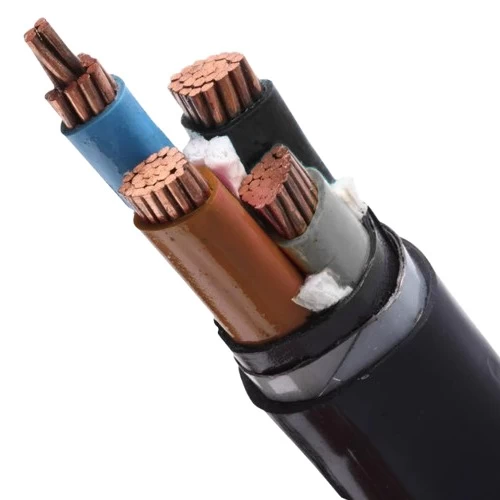

Bahra 4x185mm 0.6/1kV Power Cable, CU/XLPE/STA/PVC, Stranded Copper Conductor, Length 500 meter

Armed stranded copper electric cable (CU/XLPE/STA/PVC), 4C, 185mm2 size wire, 0.6/1kV, produced by BAHRA Cables Company, available in various sizes and colors with superior quality and competitive pricing.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 185 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.6 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 2.7 mm
• Approx Overall Diameter: 51.6 mm
• Weight: 8613 kg/km
• Standard Packaging Cable: 500 meters
• Phase Core Colors: Blue, Brown, Black, Grey
• Standard: BS 6724
