70mm 4 Core 0.6/1kV Power Cable, Stranded Copper, XLPE Insulated, SWA Armored , 500 meter/Drum | BAHRA

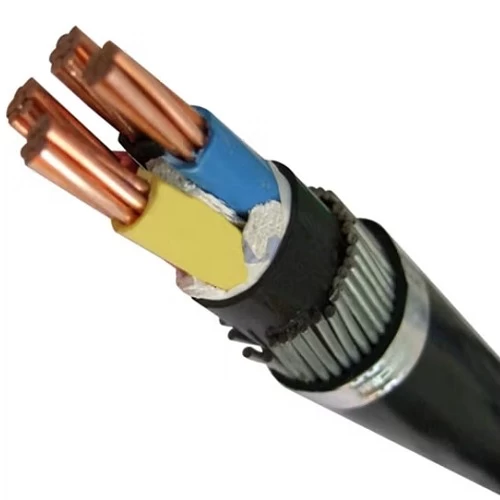

Armed stranded copper power cable (CU/XLPE/SWA/PVC), 4 core, 70mm2 size wire, 0.6/1kV, produced by BAHRA Cables Company, Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Steel Wires (SWA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 70 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.1 mm
• Nominal Steel Wire Diameter: 2.0 mm
• Nominal Sheath Thickness: 2.2 mm
• Approx Overall Diameter: 36.8 mm
• Weight: 4198 kg/km
• Standard Packaging Cable: 500 meters
• Phase Core Colors: Red, Yellow, Blue, Black
• Standard: IEC 60502-1
