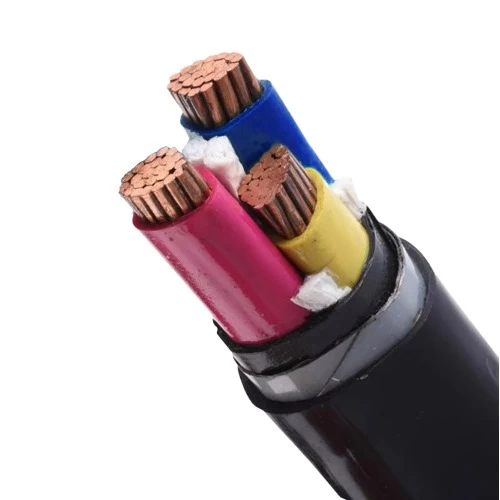

35 sq mm 3 Core 0.6/1kV Cable, CU/XLPE/STA/PVC, Stranded Copper, Length 1000 meter | BAHRA

Armored stranded copper power cable (CU/XLPE/STA/PVC), 3 core, 35mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, armored with galvanized double steel tape (STA) also It offers excellent resistance to moisture, corrosion, ensuring safety of use.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 35 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.9 mm
• Nominal Aluminum Wire Diameter: 0.2 mm
• Nominal Sheath Thickness:  1.8 mm
• Approx Overall Diameter: 26.2 mm
• Weight: 1544 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red, Yellow, Blue
• Standard: IEC 60502-1
