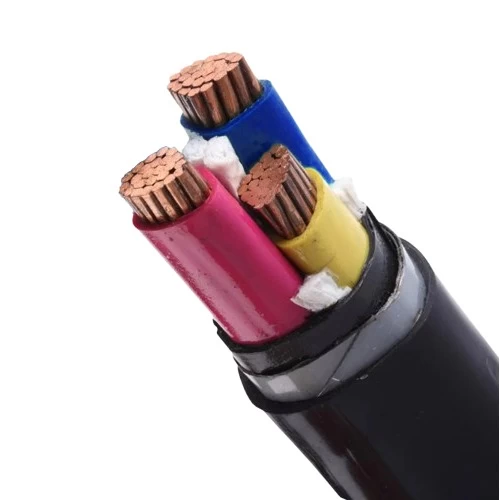

300 sq mm Three Core 0.6/1kV Cable, CU/XLPE/STA/PVC, Stranded Copper, 300 m | BAHRA

Armored stranded copper power cable (CU/XLPE/STA/PVC), 3 core, 300mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, according to the International electrotechnical commission standard sheathed with PVC (polyvinyl chloride) material to give it mechanical strength to protect it from pressures.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 300 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 1.8 mm
• Nominal Aluminum Wire Diameter: 0.5 mm
• Nominal Sheath Thickness:  2.9 mm
• Approx Overall Diameter: 69.0 mm
• Weight: 9094 kg/km
• Standard Length: 300 meters
• Phase Core Color: Red, Yellow, Blue
• Standard: IEC 60502-1
