240 mm Three Core 0.6/1kV Cable, CU/XLPE/STA/PVC, Stranded Copper, 500 M/Drum | BAHRA

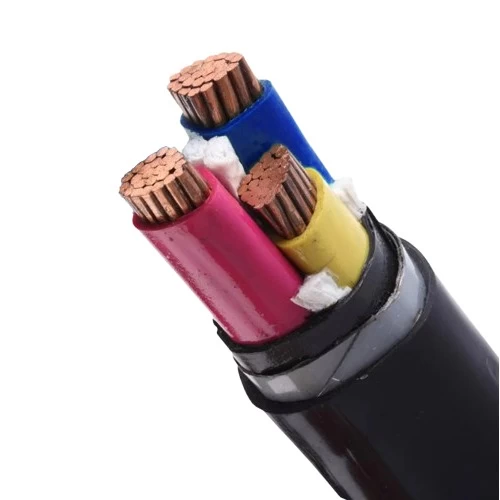

Armored stranded copper power cable (CU/XLPE/STA/PVC), 3 core, 240mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion due to its excellent mechanical properties It also offers excellent resistance to moisture.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armoring: Galvanized Double Steel Tapes (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 1.7 mm
- Nominal Aluminum Wire Diameter: 0.5 mm
- Nominal Sheath Thickness: 2.8 mm
- Approx Overall Diameter: 62.5 mm
- Weight: 9094 kg/km
- Standard Length: 500 meters
- Phase Core Color: Brown, Black, Gray
- Standard: BS 5467
