120mm 3 Phase 0.6/1kV Cable, CU/XLPE/STA/PVC, Stranded Copper, Length 500 meter | BAHRA

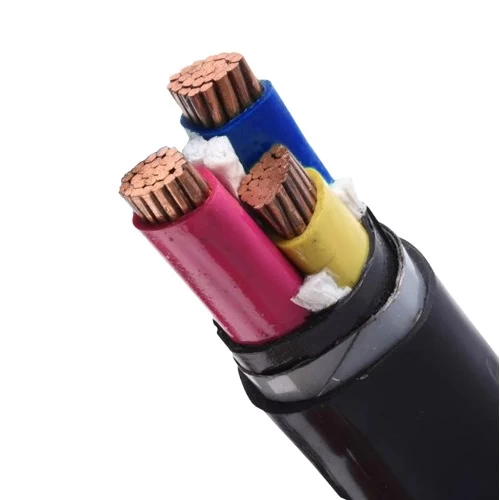

Armored stranded copper power cable (CU/XLPE/STA/PVC), 3 core, 120mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, according to the International electrotechnical commission standard armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures ensuring safety of use.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armoring: Galvanized Double Steel Tapes (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness:1.2 mm
- Nominal Aluminum Wire Diameter: 0.5 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 45.2 mm
- Weight: 4819 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
