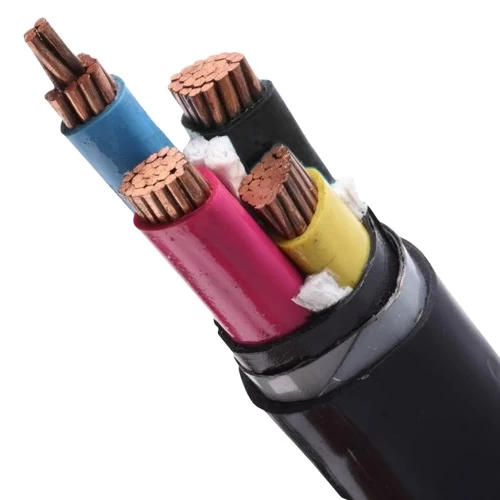

120mm 0.6/1kV Armoured Cable CU/XLPE/STA/PVC, 4 Core, Stranded Copper, 500 m | BAHRA

Armored stranded copper electrical cable (CU/XLPE/STA/PVC),120sq mm size wire, 4 Core, 0.6/1kV, produced by BAHRA Cables Company, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable and prevents harmful UV rays from damaging the cable.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 120 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.2 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 2.4 mm
• Approx Overall Diameter: 42.7 mm
• Weight: 5863 kg/km
• Standard Packaging Cable: 500 meters
• Phase Core Colors: Red, Yellow, Blue, Black
• Standard: IEC 60502-1
