10mm 3 Core 0.6/1kV Electric Cable, CU/XLPE/STA/PVC, Stranded Copper, 1000 meter | BAHRA

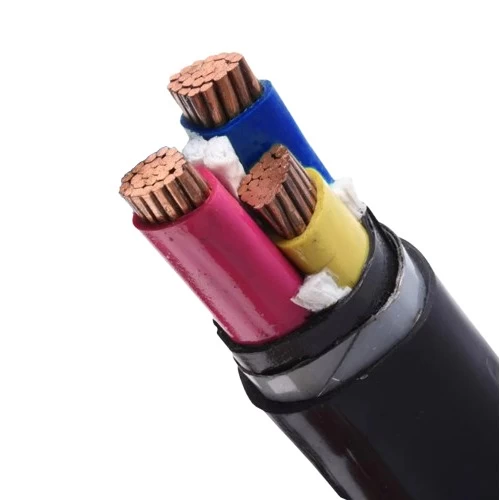

Armored stranded copper power cable (CU/XLPE/STA/PVC), 3 core, 10mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, Insulated with XLPE, which ensuring long-term safety of use without compromising performance.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.7 mm
• Nominal Aluminum Wire Diameter: 0.2 mm
• Nominal Sheath Thickness:  1.8 mm
• Approx Overall Diameter: 18.3 mm
• Weight: 674 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red, Yellow, Blue
• Standard: IEC 60502-1
