10 mm Three Core 0.6/1kV Cable, CU/XLPE/STA/PVC, Stranded Copper, 1000 M/Drum | BAHRA

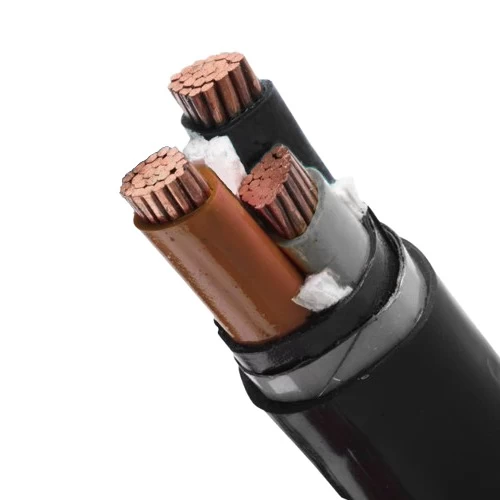

Armored stranded copper power cable (CU/XLPE/STA/PVC), 3 core, 10mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, armored with galvanized double steel tape (STA) also It offers excellent resistance to moisture, corrosion, and chemicals, ensuring safety of use from damaging the cable.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armoring: Galvanized Double Steel Tapes (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.7 mm
• Nominal Aluminum Wire Diameter: 0.2 mm
• Nominal Sheath Thickness:  1.8 mm
• Approx Overall Diameter: 18.3 mm
• Weight: 674 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown, Black, Gray
• Standard: BS 5467
