Two Core Flexible Copper Cable, 1mm Size, 300/500 Rated Voltage, PVC Insulation and Sheath | Riyadh Cables

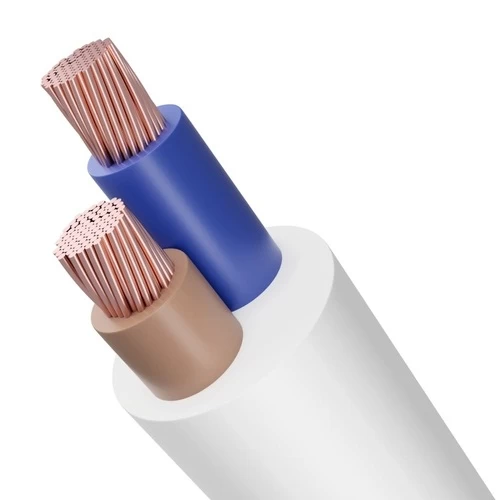

2 core flexible copper cable, 1 mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is brown and blue, produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance.

• Cable Type: H05VV-F
• Conductor: Flexible Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage Rating: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1 mm
• Number of Wires: 29
• Wire Diameter: 0.20 mm
• Approx Conductor Diameter: 1.3 mm
• Insulation Thickness: 0.6 mm
• Sheath Thickness: 0.8 mm
• Overall Diameter: 7.5 mm
• Weight: 65 kg/km
• Max DC Conductor Resistance at 20°C: 19.5 ohm/km
• Packing: 100 meter
• Insulation Color: (Blue, Brown)
• Outer Sheath Color: White
• Standards: BS 6500, IEC 60227
