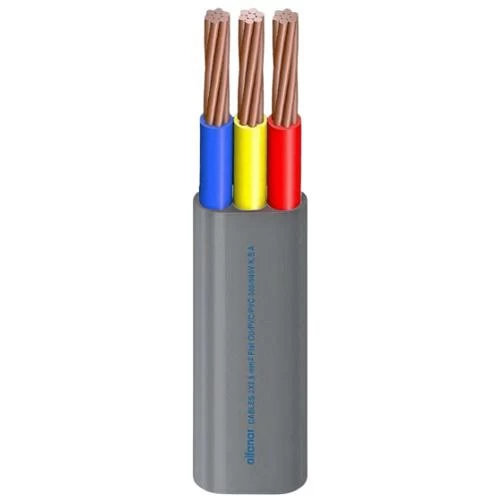

Three Core Stranded Copper Flat Cable, 6mm Cross Section, 300/500 volts, PVC Insulated and Sheathed | Alfanar

Stranded copper flat cable, 6 mm2 cross section three core, 300/500 volts, PVC insulated and sheathed, insulation color (red, yellow, blue), its flat design saves space when mounted on walls or outdoor electronic signboards, from Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires: 7
• Wire Diameter: 1.04 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 1.1 mm
• Approx. Overall Diameter: 6.9 × 16.4 mm
• Weight: 305 kg/km
• Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
• Insulation Color: (Red, Yellow, Blue)
• Standard: BS 6004
