Three Core Stranded Copper Electric Cable, 25mm2 Size, 300/500 Rated Voltage, PVC Insulation | Riyadh Cables

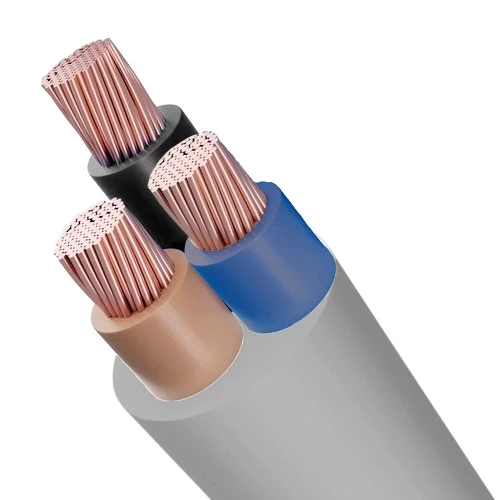

3 core stranded electrical copper cable (CU/PVC/PVC), 25 mm2 cross-sectional area, 300/500V, insulation color is brown, blue and black, produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance, insulated and sheathed with high quality PVC compound (polyvinyl chloride).

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of Wires: 7
• Approx Conductor Diameter: 6.42 mm
• Insulation Thickness: 1.2
• Sheath Thickness: 1.6 mm
• Overall Diameter: 26 mm
• Weight: 1255 kg/km
• Max DC Conductor Resistance at 20°C: 0.727 ohm/km
• Standard Packing Length: 1000 meter
• Insulation Color: (Brown, Blue, Black)
• Outer Sheath Color: Gray
• Standards: IEC 60502, SSA 1450
