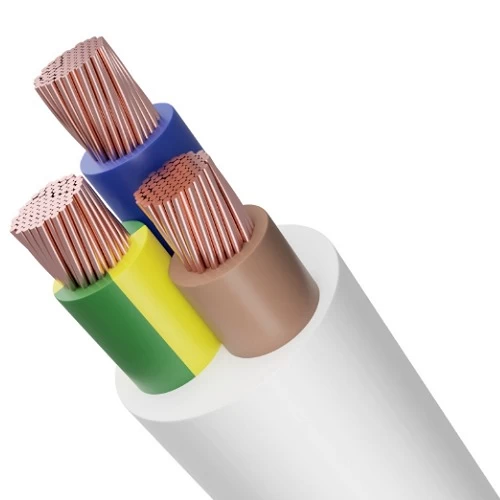

Three Core Electric Cable 1.5mm2 Size, 300/500V, Flexible Copper Conductor, PVC Insulation | Riyadh Cables

3 core flexible electrical copper cable (CU/PVC/PVC), 1.5 mm2 cross-sectional area, 300/500V, produced by Riyadh Cables Company, insulation color is brown, blue and yellow/green, according to international standards, ensuring its quality and performance, the outer jacket also provides protection for the cable from corrosion and external factors.

• Cable Type: H05VV-F
• Conductor: Flexible Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage Rating: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5 mm
• Number of Wires: 28
• Wire Diameter: 0.25 mm
• Approx Conductor Diameter: 1.6 mm
• Insulation Thickness: 0.7 mm
• Sheath Thickness: 0.9 mm
• Overall Diameter: 9.4 mm
• Weight: 100 kg/km
• Max DC Conductor Resistance at 20°C: 13.3 ohm/km
• Packing: 100 meter
• Insulation Color: (Blue, Brown, yellow/Green)
• Outer Sheath Color: White
• Standards: BS 6500, IEC 60227
