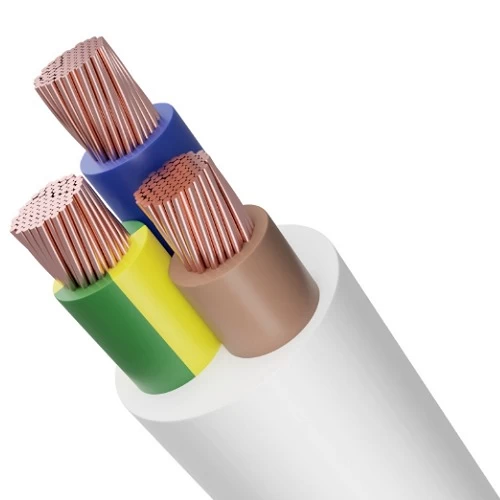

Three Core Cable 0.75mm Size Conductor, 300/500 Volts, Flexible Copper Conductor, PVC Insulation | Riyadh Cables

3 core flexible electrical copper cable (CU/PVC/PVC), 0.75 mm2 cross-sectional area, 300/500V, according to international standards, ensuring its quality and performance, insulation color is brown, blue and yellow/green, produced by Riyadh Cables Company.

• Cable Type: H05VV-F
• Conductor: Flexible Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage Rating: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 0.75 mm
• Number of Wires: 22
• Wire Diameter: 0.20 mm
• Approx Conductor Diameter: 1.1 mm
• Insulation Thickness: 0.6 mm
• Sheath Thickness: 0.8 mm
• Overall Diameter: 7.6 mm
• Weight: 65 kg/km
• Max DC Conductor Resistance at 20°C: 26.0 ohm/km
• Packing: 100 meter
• Insulation Color: (Blue, Brown, Yellow/Green)
• Outer Sheath Color: White
• Standards: BS 6500, IEC 60227
