Stranded PVC Copper Cable Single Core 70 mm, 0.6/1kV | BAHRA

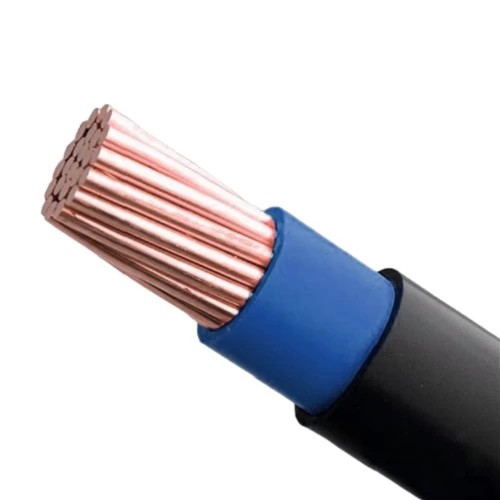

Unarmored stranded copper cable (CU/PVC/PVC), produced by BAHRA Cables company, 1C, 70mm2 size conductor, PVC cables are a widely used and effective choice for power transmission in various applications.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 70 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 16.2 mm
• Weight: 776 kg/km
• Standard Length: 500 meters
• Phase Core Color: Blue
• Standard: BS 5467 (A:2008)
