Stranded PVC Copper Cable Single Core 630 mm, 0.6/1kV | Alfanar

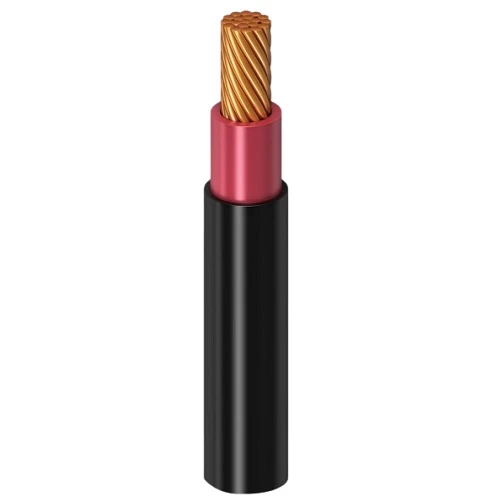

Single core stranded copper power cable (CU/PVC/PVC), Weight 6520kg/km PVC cables are economical in cost, reliable performance and durability, produced by Al Fanar Company, size 630 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 630 mm2
• Approx Overall Diameter: 40.1 mm
• Weight: 6520 kg/km
• Max DC Conductor Resistance at 20°C: 0.0283 ohm/km
• Max AC Conductor Resistance at 70°C: 0.0433 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 544 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 548 Ampere
• Current Rating In Buried Ducts (Trefoil): 496 Ampere
• Current Rating In Buried Ducts (Flat Touched): 537 Ampere
• Current Rating In Free Air (Trefoil): 700 Ampere
• Current Rating In Free Air (Flat Touched): 722 Ampere
• Current Rating In Free Air (Flat Spaced): 910 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
