Stranded PVC Copper Cable Single Core 4 mm, 0.6/1kV | Alfanar

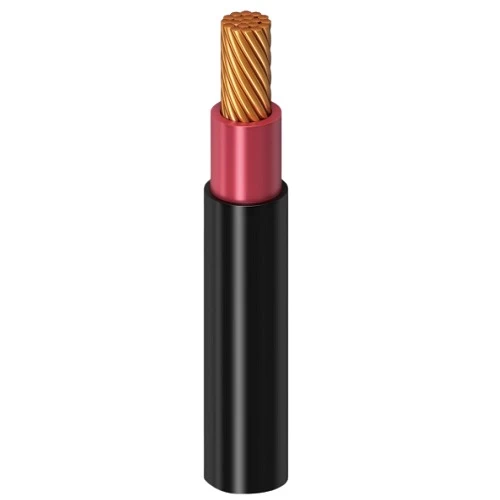

Single core stranded copper power cable (CU/PVC/PVC), The PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent electrical current leakage, produced by Al Fanar Company, size 4 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 4 mm2
• Approx Overall Diameter: 7.4 mm
• Weight: 100 kg/km
• Max DC Conductor Resistance at 20°C: 4.6100 ohm/km
• Max AC Conductor Resistance at 70°C: 5.5159 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 37 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 37 Ampere
• Current Rating In Buried Ducts (Trefoil): 28 Ampere
• Current Rating In Buried Ducts (Flat Touched): 31 Ampere
• Current Rating In Free Air (Trefoil): 30 Ampere
• Current Rating In Free Air (Flat Touched): 31 Ampere
• Current Rating In Free Air (Flat Spaced): 40 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
