Stranded PVC Copper Cable Single Core 35 mm, 0.6/1kV | Alfanar

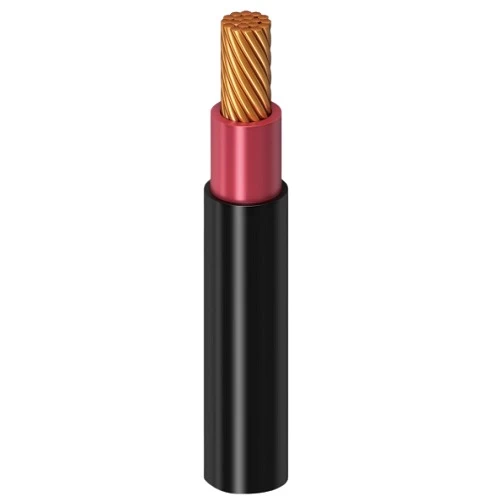

Single core stranded copper power cable (CU/PVC/PVC), According to the International Electrotechnical Commission (IEC 60502-1) standard. PVC cables are a popular and effective choice for electrical power delivery in various applications, produced by Al Fanar Company, size 35 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 35 mm2
• Approx Overall Diameter: 12.1 mm
• Weight: 425 kg/km
• Max DC Conductor Resistance at 20°C: 0.5240 ohm/km
• Max AC Conductor Resistance at 70°C: 0.6274 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 121 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 121 Ampere
• Current Rating In Buried Ducts (Trefoil): 94 Ampere
• Current Rating In Buried Ducts (Flat Touched): 104 Ampere
• Current Rating In Free Air (Trefoil): 113 Ampere
• Current Rating In Free Air (Flat Touched): 116 Ampere
• Current Rating In Free Air (Flat Spaced): 147 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
