Stranded PVC Copper Cable Single Core 2.5 mm, 0.6/1kV | Alfanar

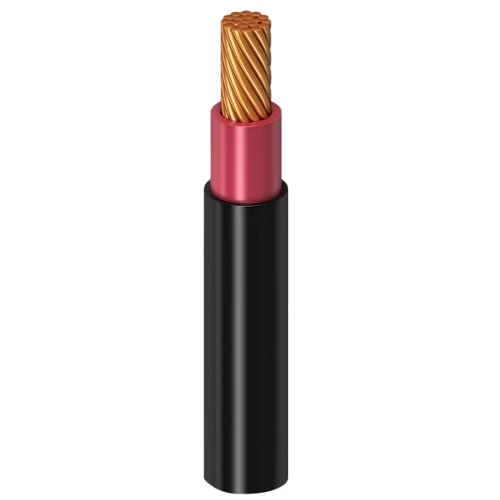

Single core stranded copper power cable (CU/PVC/PVC), PVC cables are characterized by their economical cost, reliable performance and durability, low voltage 600/1000V, produced by Al Fanar Company, size 2.5 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Approx Overall Diameter: 6.4 mm
• Weight: 70 kg/km
• Max DC Conductor Resistance at 20°C: 7.4100 ohm/km
• Max AC Conductor Resistance at 70°C: 8.8661 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 29 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 29 Ampere
• Current Rating In Buried Ducts (Trefoil): 21 Ampere
• Current Rating In Buried Ducts (Flat Touched): 24 Ampere
• Current Rating In Free Air (Trefoil): 23 Ampere
• Current Rating In Free Air (Flat Touched): 23 Ampere
• Current Rating In Free Air (Flat Spaced): 30 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
