Stranded PVC Copper Cable Single Core 16 mm, 0.6/1kV | Alfanar

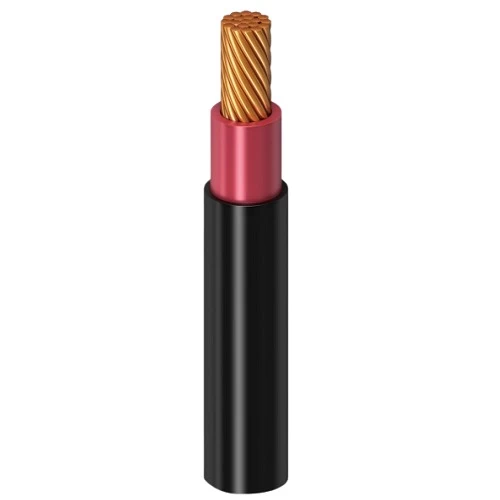

Single core stranded copper power cable (CU/PVC/PVC), The outer shell is highly resistant to water and moisture, making it suitable for indoor and outdoor uses where there is no risk of mechanical damage, produced by Al Fanar Company, size 16 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 16 mm2
• Approx Overall Diameter: 9.5 mm
• Weight: 225 kg/km
• Max DC Conductor Resistance at 20°C: 1.1500 ohm/km
• Max AC Conductor Resistance at 70°C: 1.3762 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 79 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 79 Ampere
• Current Rating In Buried Ducts (Trefoil): 60 Ampere
• Current Rating In Buried Ducts (Flat Touched): 66 Ampere
• Current Rating In Free Air (Trefoil): 69 Ampere
• Current Rating In Free Air (Flat Touched): 70 Ampere
• Current Rating In Free Air (Flat Spaced): 90 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
