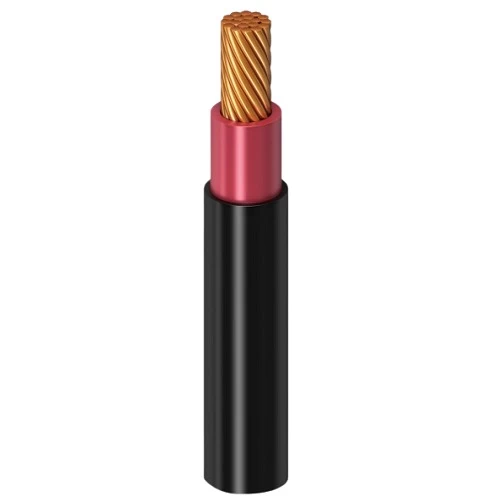

Stranded PVC Copper Cable Single Core 120 mm, 0.6/1kV | Alfanar

Single core stranded copper power cable (CU/PVC/PVC), Suitable for different tastes, available in a variety of sizes and colors with the highest quality and best prices, produced by Al Fanar Company, size 120 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 120 mm2
• Approx Overall Diameter: 18.8 mm
• Weight: 1285 kg/km
• Max DC Conductor Resistance at 20°C: 0.1530 ohm/km
• Max AC Conductor Resistance at 70°C: 0.1850 ohm/km
• Current Rating Buried Direct in Ground (Trefoil): 236 Ampere
• Current Rating Buried Direct in Ground (Flat Touched): 237 Ampere
• Current Rating In Buried Ducts (Trefoil): 197 Ampere
• Current Rating In Buried Ducts (Flat Touched): 211 Ampere
• Current Rating In Free Air (Trefoil): 251 Ampere
• Current Rating In Free Air (Flat Touched): 258 Ampere
• Current Rating In Free Air (Flat Spaced): 320 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
