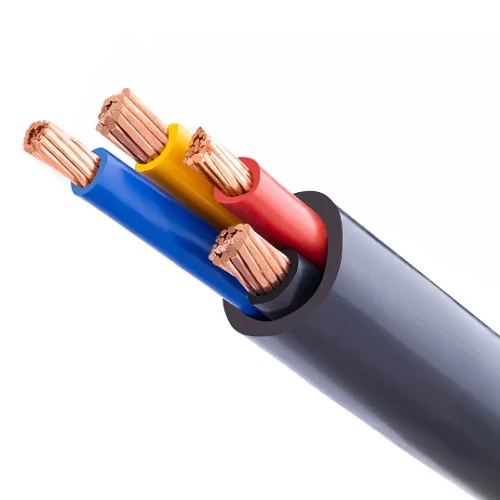

Stranded PVC Copper Cable 4 Core 70 mm, 0.6/1kV | BAHRA

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 70mm2 size conductor, Low Voltage 0.6/1kV, The cable is not affected by bacteria and fungi, making it suitable for use in humid environments. Insulation color (red, yellow, blue, black), manufactured by Bahra Cables Company.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 70 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.4 mm
• Nominal Sheath Thickness: 2 mm
• Approx Overall Diameter: 31.4 mm
• Weight: 3022 kg/km
• Standard Packaging Cable: 1000 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
