Stranded PVC Copper Cable 4 Core 6 mm, 0.6/1kV | SCC

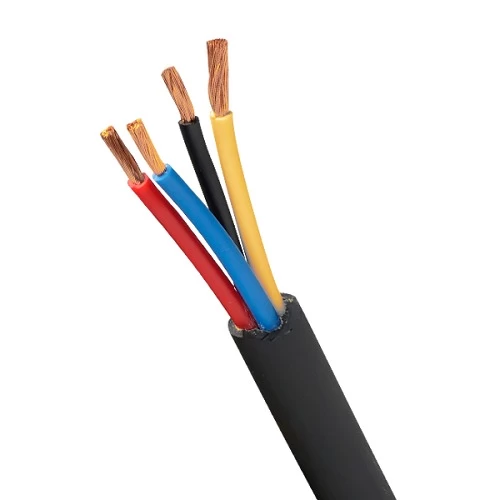

Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores, 6mm², 0.6/1 kV, used in medium power applications offering great flexibility during wiring, combined with strong resistance to moisture and heat, extending cable life and reducing maintenance needs. Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: Heat resistant PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of wires: 7
- Nominal Insulation Thickness:1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18.5 mm
- Weight: 545 kg/km
- Standard Length: 1000 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: CJH4-07A
Contact Us
Related products
Stranded PVC Copper Cable 4 Core 6 mm, 0.6/1kV | SCC
Unarmored stranded copper cable (CU/PVC/PVC), 4 cores, 6mm², 0.6/1 kV, used in medium power applications offering great flexibility during wiring, combined with strong resistance to moisture and heat, extending cable life and reducing maintenance needs. Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18.5 mm
- Weight: 545 kg/km
- Standard Length: 1000 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: CJH4-07A
