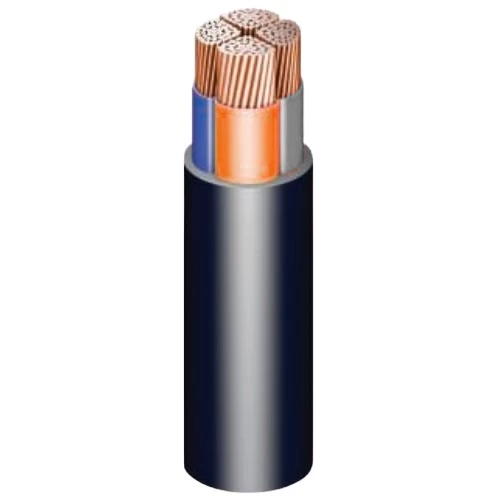

Stranded PVC Copper Cable 4 Core 50 mm, 0.6/1kV | Riyadh Cables
Four core electrical stranded copper cable (CU/PVC/PVC), The thickness of the first insulation layer is 1.4 mm, insulated in two layers. The first layer provides excellent electrical insulation, Size 50×4 mm2, produced by Riyadh Cables Company.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire Type: Sectoral Stranded (sm)
- Number of Cores: 4 Core
- Size (cross-sectional area) : 50 mm2
- Number of wires : 6
- Thickness of first insulation layer : 1.4 mm
- Thickness of outer jacket layer : 1.9 mm
- Approx overall diameter : 32 mm
- Weight : 2400 kg/km
- Length : 500 meters
- Phase Core Color: Blue, Brown, Black, Gray
- Conformity According to International Standard: IEC 60502-1
Contact Us
Related products

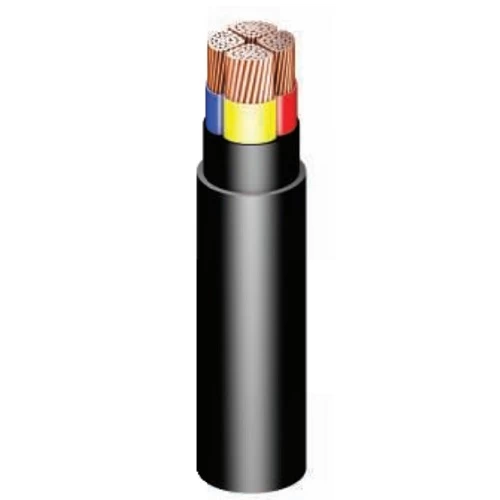

Stranded PVC Copper Cable 4 Core 50 mm, 0.6/1kV | Riyadh Cables
