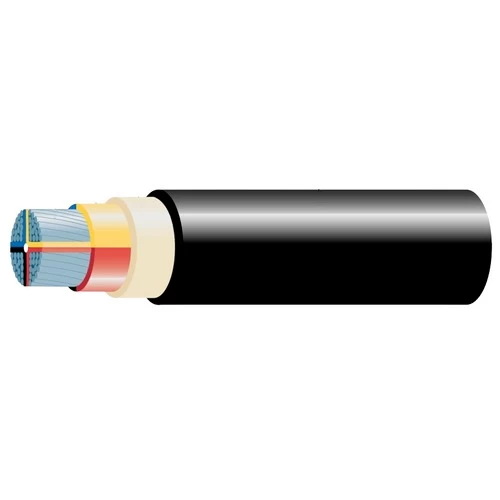

Stranded PVC Copper Cable 4 Core 4×95+50 mm, 0.6/1kV | SCC
Unarmored stranded copper cable (CU/PVC/PVC), 4 cores plus neutral, size 4×95+50 mm², low voltage 0.6/1 kV, produced by Saudi Cables Company (SCC), used in large-scale projects requiring high conductivity and consistent performance.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx95 mm2 ) + 50 mm2
- Number of Phase Wires: 15
- Number of Neutral Wires: 19
- Nominal Insulation Thickness of Phase: 1.6 mm
- Nominal Insulation Thickness of Neutral: 1.4 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 38.8 mm
- Weight: 3965 kg/km
- Length: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: EJHB-62A
Contact Us
