Stranded PVC Copper Cable 4 Core 4×70+35 mm, 0.6/1kV | SCC

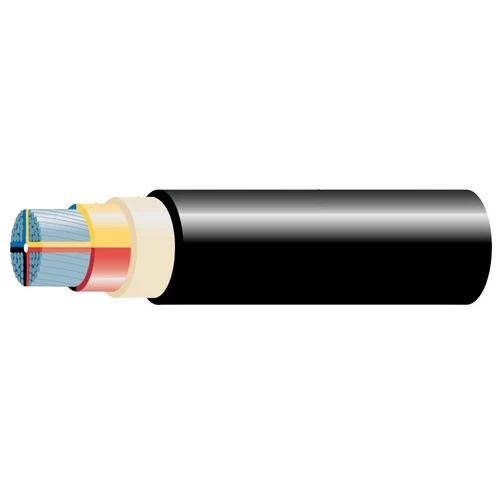

Unarmored stranded copper power cable (CU/PVC/PVC), four core plus neutral, size 4×70+35 mm², low voltage 0.6/1 kV, produced by Saudi Cables Company (SCC), provides effective protection against mechanical damage and environmental fluctuations.
- Conductor: Stranded Copper
- Insulation Material: Heat resistant PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx70 mm2 ) + 35 mm2
- Number of Phase Wires: 12
- Number of Neutral Wires: 6
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.2 mm
- Nominal Sheath Thickness: 2.0 mm
- Approx Overall Diameter: 33.8 mm
- Weight: 2910 kg/km
- Length: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: EJHB-59A
