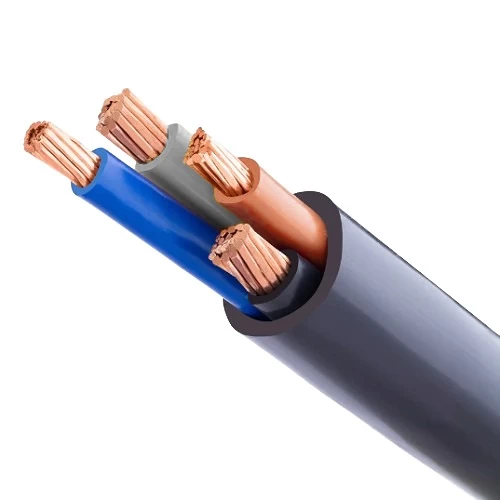

Stranded PVC Copper Cable 4 Core 4×500 mm, 0.6/1kV | BAHRA

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 500mm2 size conductor, Low Voltage 0.6/1kV, The cable can be easily connected using the appropriate terminals and connectors, insulation color (blue, brown, black, gray), manufactured by Bahra Cables Company.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 500 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.8 mm
• Nominal Sheath Thickness: 3.6 mm
• Approx Overall Diameter: 76.2 mm
• Weight: 20680 kg/km
• Standard Packaging Cable: 250 meters
• Phase Core Colors: (blue, brown, black, gray)
• Standard: BS 6724
