Stranded PVC Copper Cable 4 Core 4×240 mm, 0.6/1kV | BAHRA

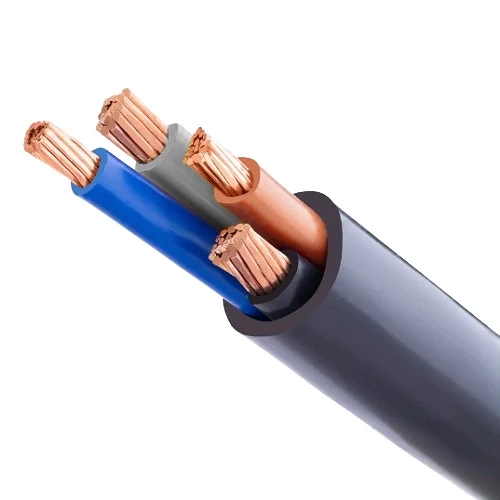

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 240mm2 size conductor, Low Voltage 0.6/1kV, The cable is used in residential, commercial and industrial applications, insulation color (blue, brown, black, gray), manufactured by Bahra Cables Company.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 240 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.2 mm
• Nominal Sheath Thickness: 2.9 mm
• Approx Overall Diameter: 55.1 mm
• Weight: 10323 kg/km
• Standard Packaging Cable: 250 meters
• Phase Core Colors: (blue, brown, black, gray)
• Standard: BS 6724
