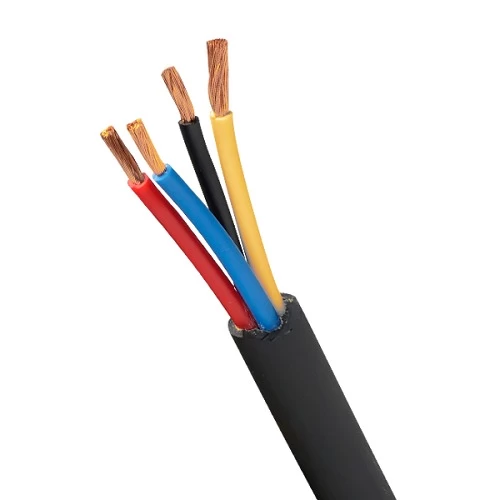

Stranded PVC Copper Cable 4 Core 4×16+10 mm, 0.6/1kV | SCC
Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores plus neutral, size 4×16+10 mm², low voltage 0.6/1 kV, Produced by Saudi Cables Company (SCC), features high-quality PVC insulation protecting copper conductors from moisture and corrosion with high flexibility facilitating connection and use in various industrial and commercial applications.
- Conductor: Stranded Copper
- Insulation Material: Heat resistant PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx16 mm2 ) + 10 mm2
- Number of Phase Wires: 6
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1 mm
- Nominal Insulation Thickness of Neutral: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 22.0 mm
- Weight: 995 kg/km
- Length: 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: EJHB-53A
