Stranded PVC Copper Cable 4 Core 400 mm, 0.6/1kV | SCC

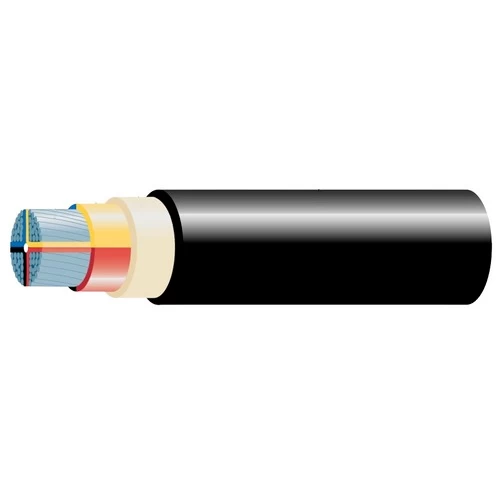

Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores, 400mm², low voltage 0.6/1 kV, used in large-scale power systems with high load capacity, produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: Heat resistant PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of wires: 53
- Nominal Insulation Thickness: 2.6 mm
- Nominal Sheath Thickness: 3.4 mm
- Approx Overall Diameter: 70.8 mm
- Weight: 16675 kg/km
- Standard Length: 250 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: FJH4-27A
Contact Us
Related products
Stranded PVC Copper Cable 4 Core 400 mm, 0.6/1kV | SCC
Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores, 400mm², low voltage 0.6/1 kV, provides exceptional performance in heavy-duty and critical industrial environments, Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of wires: 53
- Nominal Insulation Thickness: 2.6 mm
- Nominal Sheath Thickness: 3.4 mm
- Approx Overall Diameter: 70.8 mm
- Weight: 16675 kg/km
- Standard Length: 250 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: FJH4-27A
