Stranded PVC Copper Cable 4 Core 400 mm, 0.6/1kV | BAHRA

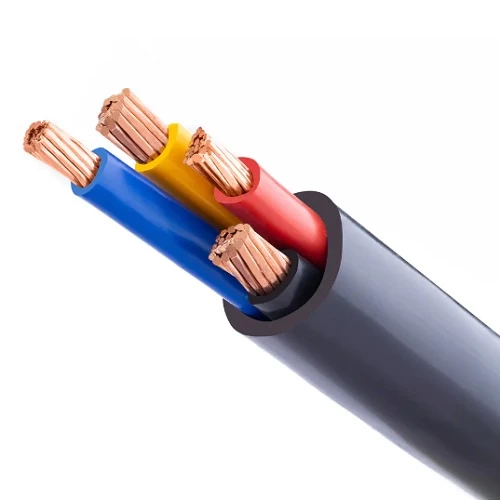

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 400mm2 size conductor, Low Voltage 0.6/1kV, The braided structure of the conductor increases the flexibility of the cable and its ability to withstand bends and twists. Produced by Bahra Cables Company. Insulation color (red, yellow, blue, black).

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 400 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.6 mm
• Nominal Sheath Thickness: 3.4 mm
• Approx Overall Diameter: 68.8 mm
• Weight: 16507 kg/km
• Standard Packaging Cable: 250 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
