Stranded PVC Copper Cable 4 Core 4 mm, 300/500V | Riyadh Cables

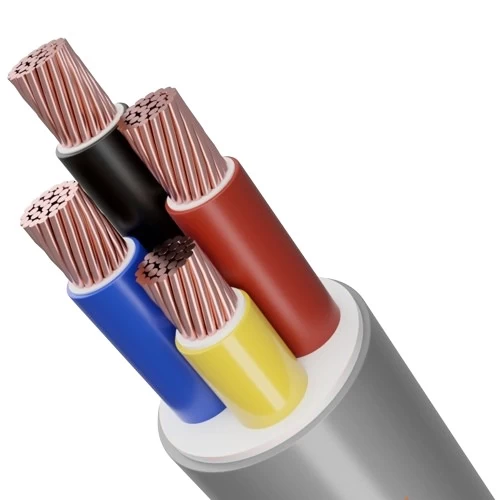

4 core stranded electrical copper cable (CU/PVC/PVC), 4 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is red, blue, yellow and black, produced by Riyadh Cables Company.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm
- Number of Wires: 7
- Approx Conductor Diameter: 2.55 mm
- Insulation Thickness: 0.8
- Sheath Thickness: 1.4 mm
- Overall Diameter: 15 mm
- Weight: 330 kg/km
- Max DC Conductor Resistance at 20°C: 4.61 ohm/km
- Standard Packing Length: 100 meter coil
- Insulation Color: (Red, Blue, Yellow, Black)
- Outer Sheath Color: Gray
- Standards: SSA 1450, IEC 60227 (IEC 10)
Contact Us
Related products
Stranded PVC Copper Cable 4 Core 4 mm, 300/500V | Riyadh Cables

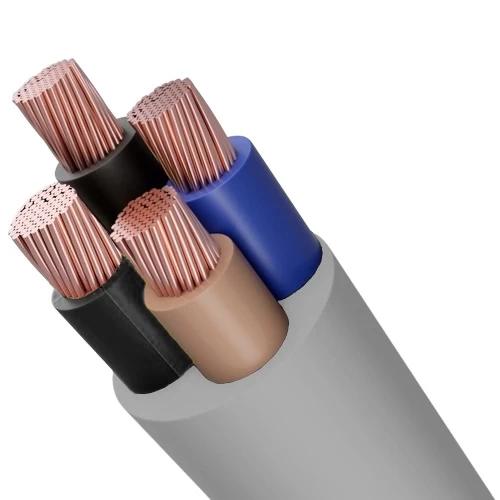

4 core stranded electrical copper cable (CU/PVC/PVC), 4 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is black, blue, brown and black, produced by Riyadh Cables Company.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm
- Number of Wires: 7
- Approx Conductor Diameter: 2.55 mm
- Insulation Thickness: 0.8
- Sheath Thickness: 1.4 mm
- Overall Diameter: 15 mm
- Weight: 330 kg/km
- Max DC Conductor Resistance at 20°C: 4.61 ohm/km
- Standard Packing Length: 100 meter coil
- Insulation Color: (Black, Blue, Brown, Black)
- Outer Sheath Color: Gray
- Standards: SSA 1450, IEC 60227 (IEC 10)
