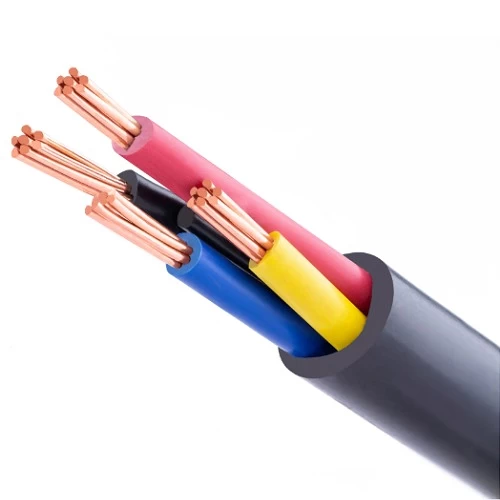

Stranded PVC Copper Cable 4 Core 4 mm, 300/500V | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 4 core, 4mm2 cross-sectional area, low voltage 300/500V, The cable withstands vibrations and mechanical shocks without affecting its performance, making it suitable for use in places exposed to continuous vibrations, from Nohascom Company, red, yellow, blue and black.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 7
• Wire Diameter: 0.85 mm
• Nominal Insulation Thickness: 0.8
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 12.6 mm
• Weight: 290 kg/k
• Insulation Color: (Red, yellow, blue, black)
• Standard: SASO IEC 60227-4
