Stranded PVC Copper Cable 4 Core 4 mm, 0.6/1kV | RESCAB
Stranded Copper Electric Cable (CU/PVC/PVC), 4sq mm, 4 Core, Low Voltage 0.6/1 kV, manufactured by Red Sea Cables. Its PVC insulation layer offers effective protection against corrosion and harsh environmental conditions, ideal for both indoor and outdoor use.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18 mm
- Max DC Conductor Resistance at 20°C: 4.61ohm/km
- Weight: 480 kg/km
- Standard Length: 1000 meters

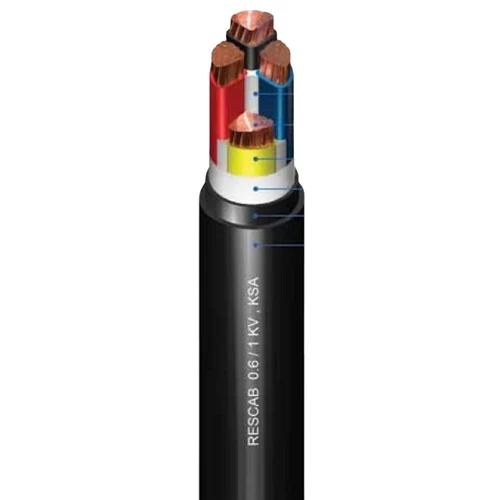

- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
Contact Us
Related products
Stranded PVC Copper Cable 4 Core 4 mm, 0.6/1kV | RESCAB
Stranded Copper Electric Cable (CU/PVC/PVC), 4 Core, 4 sq mm, Low Voltage 0.6/1 kV, produced by RESCAB. It ensures excellent protection from electrical leakage and environmental factors, thanks to its durable PVC outer layer resistant to water and heat.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18 mm
- Max DC Conductor Resistance at 20°C: 4.61ohm/km
- Weight: 480 kg/km
- Standard Length: 1000 meters

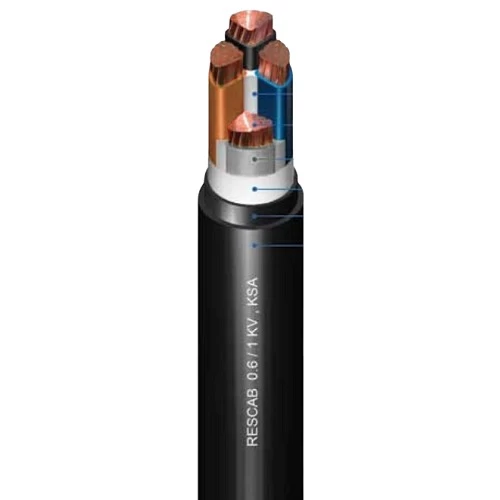

- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
