Stranded PVC Copper Cable 4 Core 4 mm, 0.6/1kV | Alfanar

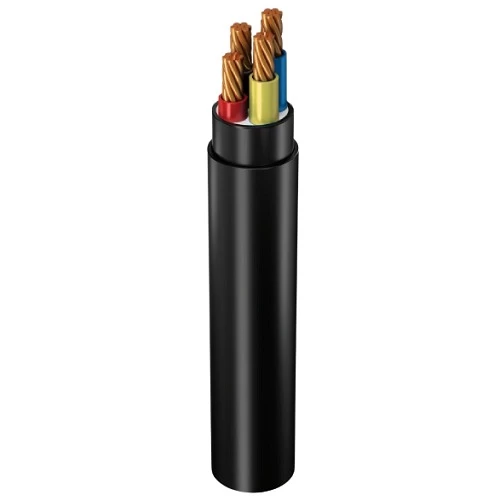

Four core stranded copper power cable (CU/PVC/PVC/PVC), The outer jacket helps prevent harmful sunlight from damaging the cable, protecting the cable from shock, abrasion and abrasion, produced by Al Fanar Company, size 4 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 4 mm2
• Max DC Conductor Resistance at 20°C: 4.6100 ohm/km
• Max AC Conductor Resistance at 70°C: 5.5159 ohm/km
• Current Rating Laid in Ground: 38 Ampere
• Current Rating Laid In Ducts: 26 Ampere
• Current Rating Laid in Free Air: 32 Ampere
• Approx Overall Diameter: 16.6 mm
• Weight: 465 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
