Stranded PVC Copper Cable 4 Core 35 mm, 300/500V | SCC

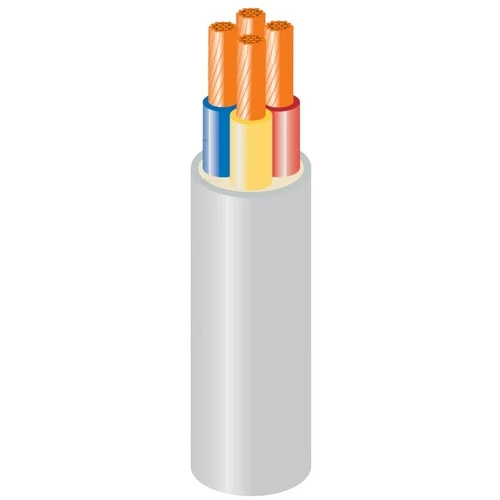

Stranded copper 4 core electric cable (CU/PVC/PVC), 35 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 1000 meters. Ideal for high-load projects. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35mm2
- Number of Wires: 19
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 28.9 mm
- Weight: 1880 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH4-12H
Related products
Stranded PVC Copper Cable 4 Core 35 mm, 300/500V | SCC

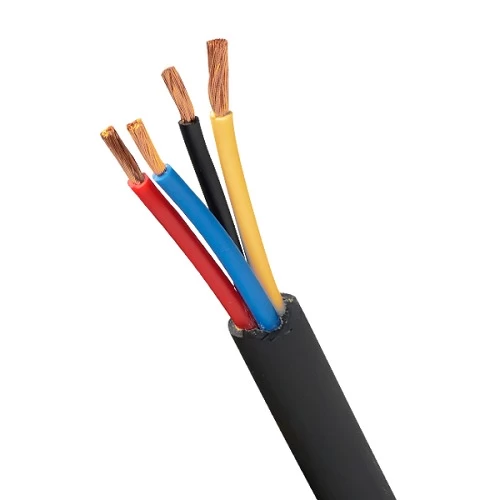

Stranded copper 4 core electric cable (CU/PVC/PVC), 35 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with black sheath, 1000 meters. High reliability for power transmission. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35mm2
- Number of Wires: 19
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 28.9 mm
- Weight: 1880 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH4-12H
Related products
Stranded PVC Copper Cable 4 Core 35 mm, 300/500V | SCC
Stranded copper 3 core electric cable (CU/PVC/PVC), 35 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with black sheath, 1000 meters. Provides strong and long-lasting electrical performance. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35mm2
- Number of Wires: 19
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 28.9 mm
- Weight: 1880 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH4-12H
- High-quality stranded copper cable produced by Saudi Cables Company.
- Durable PVC insulation that withstands temperatures up to 85 degrees Celsius, ensuring safety and efficiency in electrical transmission.
- External PVC sheath provides excellent protection against corrosion and environmental factors.
- Compliant with international standards SASO:55 and BS:6004-1984 to ensure the highest safety standards.
Related products
Stranded PVC Copper Cable 4 Core 35 mm, 300/500V | SCC
Stranded copper 4 core electric cable (CU/PVC/PVC), 35 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with gray sheath, 1000 meters. High durability and withstands extreme conditions. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35mm2
- Number of Wires: 19
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 28.9 mm
- Weight: 1880 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH4-12H
