Stranded PVC Copper Cable 4 Core 35 mm, 300/500V | Riyadh Cables

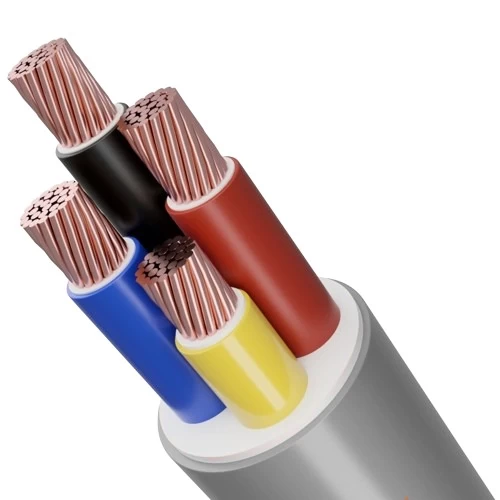

4 core stranded copper cable, 35mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is red, blue, yellow and black, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 35 mm2
• Number of Wires: 7
• Approx Conductor Diameter: 7.65 mm
• Insulation Thickness: 1.2
• Sheath Thickness: 1.6 mm
• Overall Diameter: 32 mm
• Weight: 2040 kg/km
• Max DC Conductor Resistance at 20°C: 0.524 ohm/km
• Standard Packing Length: 1000 meter
• Insulation Color: (Red, Blue, Yellow, Black)
• Outer Sheath Color: Gray
• Standards: SSA 1450, IEC 60227 (IEC 10)
